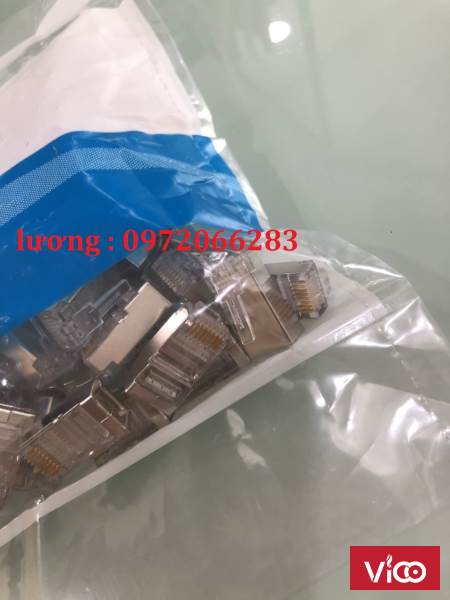

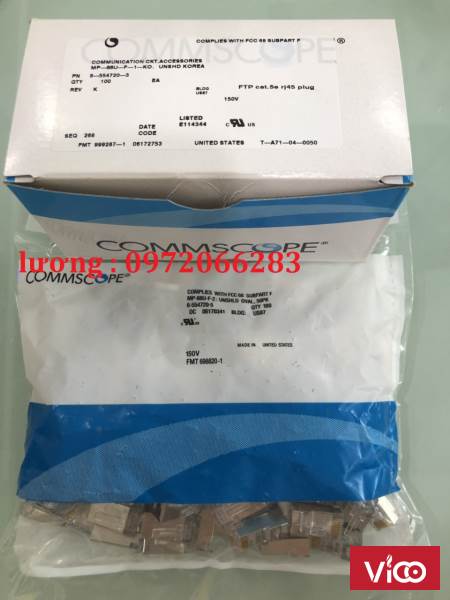

Hạt Mạng AMP ( 6-569530-3 ) Category 5 Modular Plug, Shielded, RJ45, 26-24AWG, Solid
6-569530-3 | MP-88S-R-1
Hạt Mạng AMP ( 6-569530-3 ) Category 5 Modular Plug, Shielded, RJ45, 26-24AWG, Solid (MJPLUG, 8P, RND, SLD, SHLD, 24 26 AWG)
Modular Plug Kit, 8P/8C, shielded, round, 5.1 mm max cable jack OD, 8-position, category 5, 100/bag
Hạt Mạng AMP ( 6-569530-3 ) Category 5 Modular Plug, Shielded, RJ45, 26-24AWG, Solid
Product Specifications
Product Classification
Portfolio NETCONNECT®
Product Type Modular plug
Regional Availability Asia | Australia/New Zealand | EMEA | Latin America | North America

Body Features
Conductor Type Solid | Stranded
Shield Material Copper alloy
Shield Plating Material Nickel

Configuration Features
Number of Positions 8
Keyed No

Contact Features
Contact Base Material Phosphor bronze
Contact Mating Area Plating Material Gold
Contact Mating Area Plating Thickness 50.00 µin | 1.27 µm
Number of Contacts Loaded 8

Dimensions
Cable Jacket Outside Diameter Range 0.20 in | 5.1 mm
Conductor Wire Size 26–24 AWG
Insulated Conductor Outside Diameter 0.034–0.039 in | 0.86–0.99 mm

Housing Features
Housing Material Glass filled polycarbonate

Industry Standards
UL Flammability Rating UL 1863

Packaging Features
Packaging Quantity 100

Product Type Features
Cable Type Round, shielded
Performance Category Category 5
Connector Style Plug
Jack Type RJ45
Latch Style Standard
Shielded Yes

Termination Features
Termination Method to Wire/Cable Ins
Modular Plug Kit, 8P/8C, shielded, round, 5.1 mm max cable jack OD, 8-position, category 5, 100/bag

Regulatory Compliance/Certifications
Product Classification
Portfolio CommScope®
Product Type Modular plug
Regional Availability Asia | Australia/New Zealand | EMEA | Latin America | North America

Dimensions
Compatible Cable Diameter, maximum 5.08 mm | 0.20 in
Compatible Cable Diameter, minimum 4.83 mm | 0.19 in
Compatible Insulated Conductor Diameter, maximum 0.990 mm | 0.039 in
Compatible Insulated Conductor Diameter, minimum 0.860 mm | 0.034 in

Electrical Specifications
ANSI/TIA Category 5
Current Rating, maximum 0.75 A
Insulation Resistance, minimum 500 mOhm
Safety Voltage Rating 150 Vac

Environmental Specifications
Operating Temperature -10 °C to +60 °C (+14 °F to +140 °F)
Relative Humidity Up to 93%, non-condensing
Safety Standard UL 1863

General Specifications
Cable Type Round, shielded
Interface RJ45
Package Quantity 100
Packaging Type Bag | Box | Carton
Positions/Loaded Contacts 8/8

Mechanical Specifications
Conductor Gauge, solid 26–24 AWG
Conductor Gauge, stranded 26–24 AWG
Conductor Type Solid | Stranded
Contact Base Material Phosphor bronze
Contact Plating Material Gold
Contact Plating Thickness 1.27 µm
Material Type Glass filled polycarbonate
Plug Insertion Life, minimum 750 times
Plug Shield Base Material Copper alloy
Plug Shield Plating Material Nickel
Termination Type IDC
