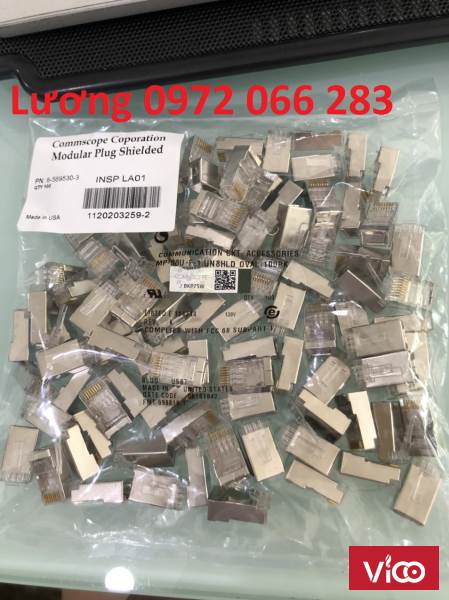

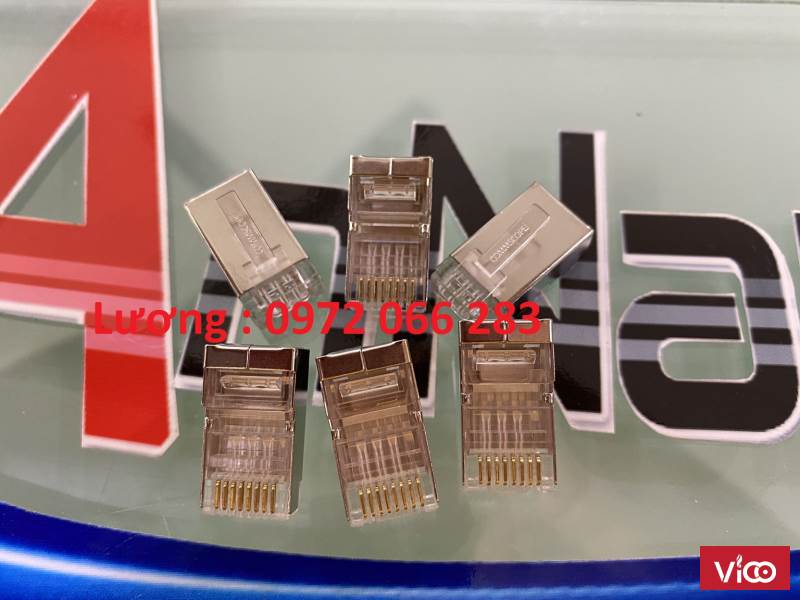

Hạt Mạng AMP ( 65695303 ) Category 5 Modular Plug, Shielded, RJ45, 2624AWG, Solid

Hạt Mạng AMP ( 6-569530-3 ) Category 5 Modular Plug, Shielded, RJ45, 26-24AWG, Solid
Mã sản phẩm : 6-569530-3
Xuất xứ : Trung quốc
Bảo hành :
Tình trạng : Mới
6-569530-3 | MP-88S-R-1
Hạt Mạng AMP ( 6-569530-3 ) Category 5 Modular Plug, Shielded, RJ45, 26-24AWG, Solid (MJPLUG, 8P, RND, SLD, SHLD, 24 26 AWG)
Modular Plug Kit, 8P/8C, shielded, round, 5.1 mm max cable jack OD, 8-position, category 5, 100/bag
Hạt Mạng AMP ( 6-569530-3 ) Category 5 Modular Plug, Shielded, RJ45, 26-24AWG, Solid
Product Specifications
Product Classification
Portfolio NETCONNECT®
Product Type Modular plug
Regional Availability Asia | Australia/New Zealand | EMEA | Latin America | North America

Body Features
Conductor Type Solid | Stranded
Shield Material Copper alloy
Shield Plating Material Nickel

Configuration Features
Number of Positions 8
Keyed No

Contact Features
Contact Base Material Phosphor bronze
Contact Mating Area Plating Material Gold
Contact Mating Area Plating Thickness 50.00 µin | 1.27 µm
Number of Contacts Loaded 8

Dimensions
Cable Jacket Outside Diameter Range 0.20 in | 5.1 mm
Conductor Wire Size 26–24 AWG
Insulated Conductor Outside Diameter 0.034–0.039 in | 0.86–0.99 mm

Housing Features
Housing Material Glass filled polycarbonate

Industry Standards
UL Flammability Rating UL 1863

Packaging Features
Packaging Quantity 100

Product Type Features
Cable Type Round, shielded
Performance Category Category 5
Connector Style Plug
Jack Type RJ45
Latch Style Standard
Shielded Yes

Termination Features
Termination Method to Wire/Cable Ins
Modular Plug Kit, 8P/8C, shielded, round, 5.1 mm max cable jack OD, 8-position, category 5, 100/bag
