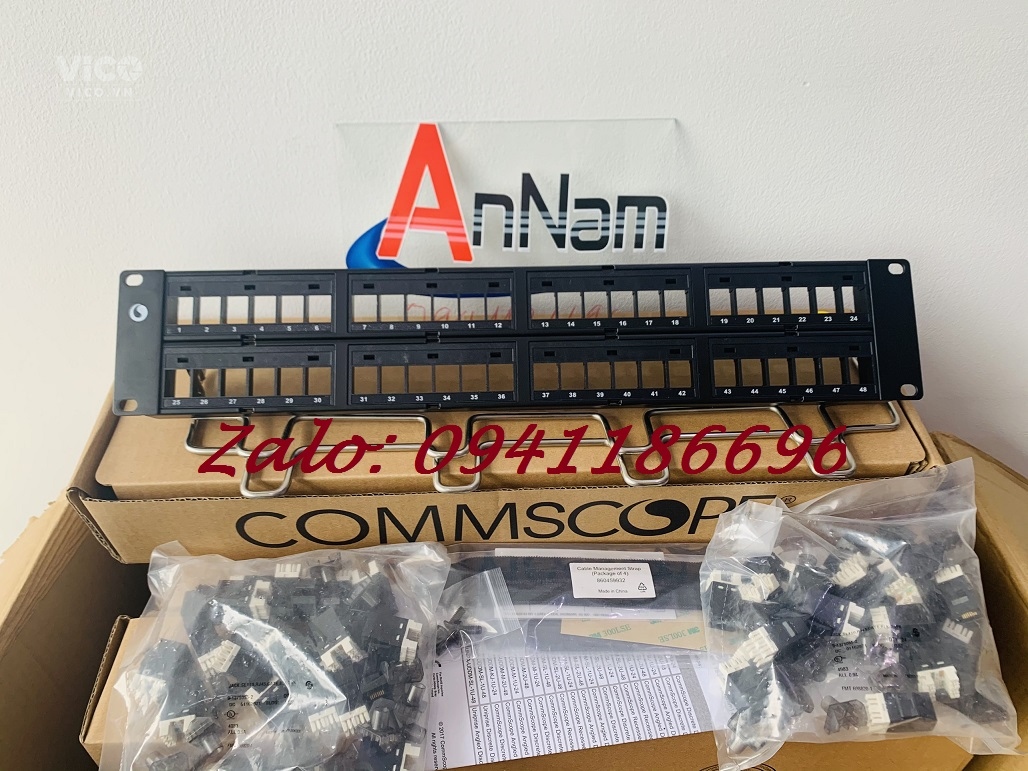

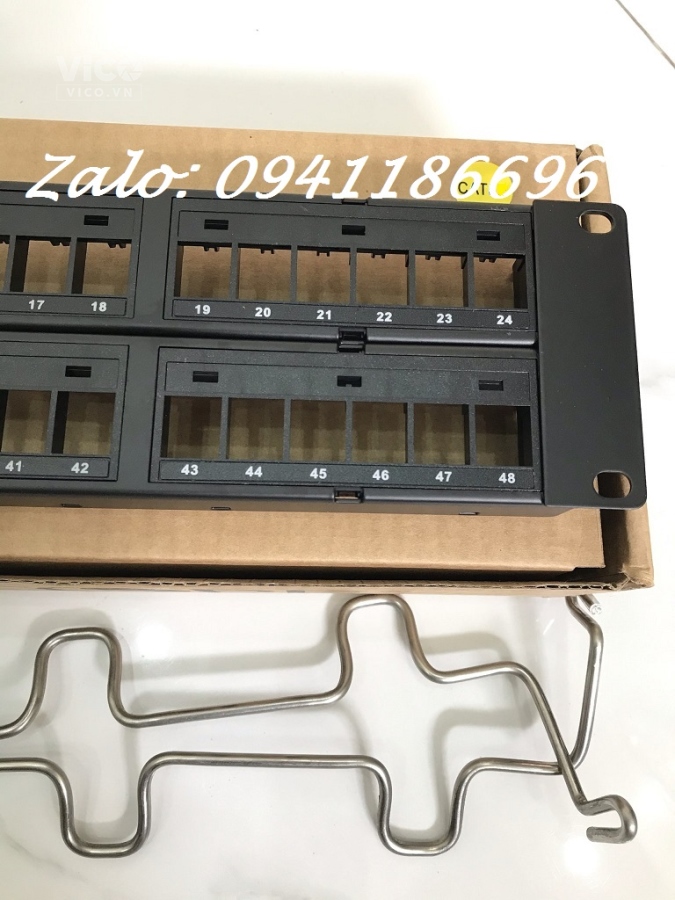

Thanh đấu nối Patch Panel 48 Port COMMSCOPE 760237041
CPP-UDDM-SL-2U-48: CommScope® SL DDM Patch Panel, UTP, 2U, 48 port Straight

Chi tiết
Patch Panel 48 Port CAT6 COMMSCOPE (760237041 | 9-1375055-2)

Mã hiệu: 760237041 | 9-1375055-2

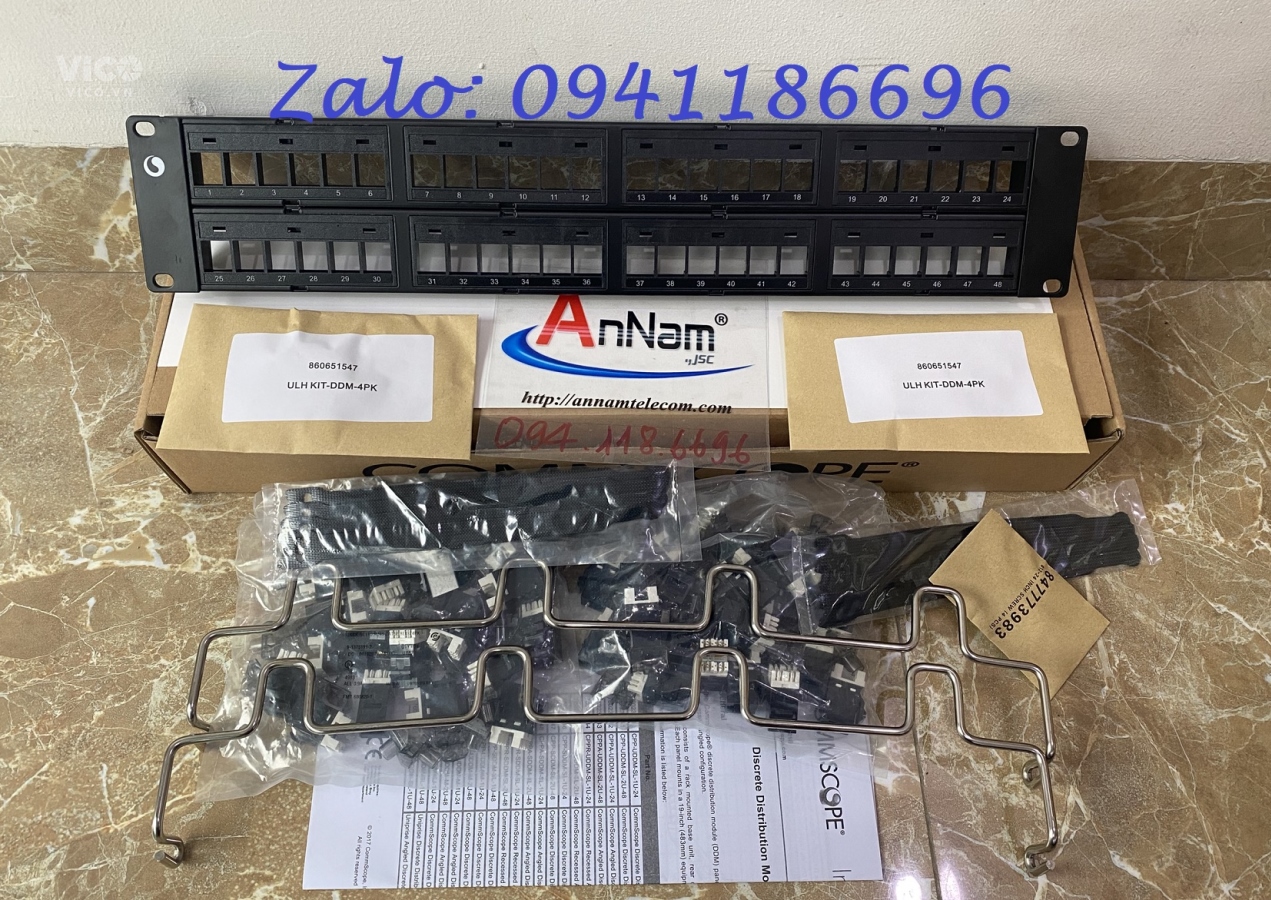

Sản phẩm đi kèm full phụ kiện gồm

9-1375055-2 Ổ cắm UTP, Cat.6, T568A/T568B, 110 SL, RJ45, màu đen
760237041 Thanh đấu nối, UTP, SL, DDM, 48 cổng, 2U, rỗng, thẳng
Thanh đấu nối dạng rỗng UTP, 1U, 48port, SL
– Mã sản phẩm 760237041
– Chiều cao 88.90mm | 3.50 in
– Chiều rộng 482.60 mm | 19.00 in
– Nhiệt độ hoạt động -10°C đến +60°C (+14°F đến +140°F)
– Nhiệt độ lưu trữ -40°C đến +70°C (-40°F đến +158°F)
– Tiêu chuẩn an toàn CUL | RCM | UL
– 48 cổng, Unshielded
– Màu đen
– Kích thước 2U (19 in)

Product Classification
Portfolio Uniprise®
Product Type RJ45 patch panel
Regional Availability North America

Dimensions
Depth 119.38 mm | 4.70 in
Diameter Over Dielectric, maximum 1.168 mm | 0.046 in
Diameter Over Dielectric, minimum 0.762 mm | 0.030 in
Height 88.90 mm | 3.50 in
Width 482.60 mm | 19.00 in

Electrical Specifications
ANSI/TIA Category 6
Current Rating 1.5 A @ 20 °C
1.5 A @ 68 °F
Dielectric Withstand Voltage, RMS, conductive surface 1500 Vac @ 60 Hz
Dielectric Withstand Voltage, RMS, contact-to-contact 1000 Vac @ 60 Hz
Insulation Resistance, minimum 500 MOhm

Environmental Specifications
Flammability Rating UL 94 V-0
Operating Temperature -10 °C to +60 °C (+14 °F to +140 °F)
Relative Humidity Up to 95%, non-condensing
Safety Standard cUL | UL
Storage Temperature -40 °C to +70 °C (-40 °F to +158 °F)

General Specifications
Total Ports, quantity 48
Cable Type Unshielded
Color Black
Modules, quantity 8
Package Quantity 1
Rack Type EIA 19 in
Rack Units 2.0

Mechanical Specifications
Conductor Gauge, solid 22 AWG | 24 AWG
Conductor Gauge, stranded 22 AWG | 24 AWG
Conductor Type Solid | Stranded
Contact Plating Material Precious metals
Material Type High-impact, flame retardant, thermoplastic | Powder-coated steel
Plug Insertion Life, minimum 750 times
Plug Insertion Life, test plug IEC 60603-7 compliant plug
Plug Retention Force, minimum 30 lbf | 133 N
Termination Contact Plating Nickel
Termination Type IDC
Wiring T568A | T568Bel 48 Port COMMSCOPE 760237041
